The DPW Page for 2012
2012 Members
- Bob Zook
- Bill Morrison
- Dave Lofland
- Harvey Firestone
- Jack Hakim
- Joan Hakim
Infrastructure Responsibilities
Shade arches
- Provide parts for three 50' long shade arches for tents.
- Supervise construction and take-down.
Water system
- Sink
- 1 high pressure pump 12V.
- Drain pipe with sock filter.
- Showers, 2 - one in each pond.
- 1 bilge pump for each shower head, in gray bucket on side of water tank.
- Gray water ponds
- Large pond, 12' x 16', holds main shower, 2 evaporators, pump cage, floaties filter bucket.
- Gray water evaporators, 3
- 1 bilge pump/evaporator
- 1 pond 1 to pond 2 transfer pump
- 12V DC source: 2 Astron linear power supplies. No battery. If power goes down, there will be no water pressure.
- Water tank, 1100 gallons.

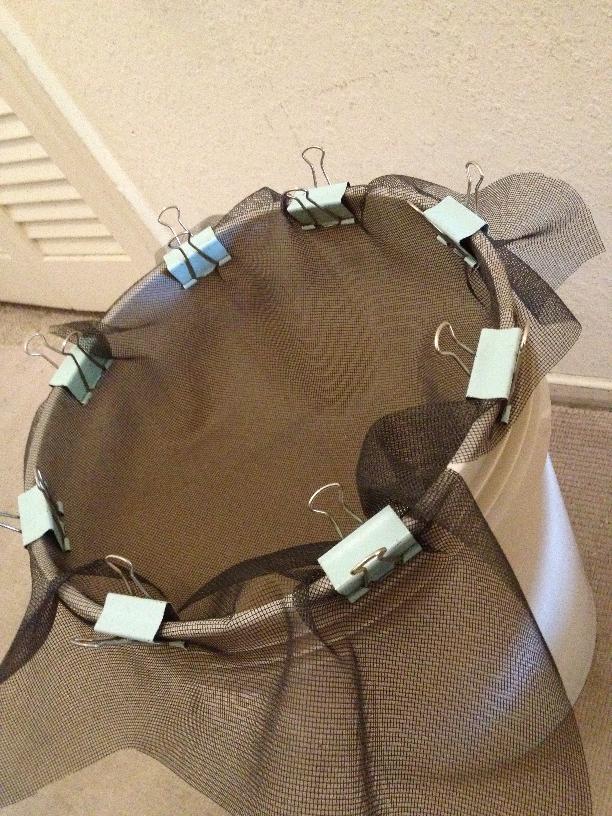

- Floaties filter
- 5 gal bucket with plastic window screen filter, for wash water (see picture below). Screen attached with 1 1/4" binder clips.
Budget
| Reverbia Shade Arches | ||
| Billboard vinyl, 3 | $130.00 | |
| PVC for arches | ||
| PEX, 1/2", 50', for vinyl stitching | ||
| Rebar | ||
| DPW Infrastructure | ||
| Billboard vinyl, 1 | $120.00 | |
| Pond edging strips, plywood | $18.01 | |
| Pond corners solar LED lights | $0.00 | |
| Stakes, metal 1' | $0.00 | |
| Binder clips, 96 (cages, pond edges, spreaders) | $11.97 | |
| Pump cages, folding, 2 | $23.99 | |
| Pump cage filter paper, gray | $0.00 | |
| Cardboard book boxes, 2, for cage hole dirt | $0.00 | |
| Sink filter screening, 36"x84" | $29.06 | |
| Paver brick weights, 2 | $1.06 | |
| Bilge pumps, 2 spares | $31.03 | |
| Chlorine tabs | $0.00 | |
| Squeegie to clean vinyl | $27.08 | |
| Wind-up timer for pond transfer pump | $17.00 | |
| Evaporation pipes | $0.00 | |
| Snap-on loom tubing, black, 1 1/4" | $45.00 | |
| Broom, synthetic, heavy duty, red | $7.46 | |
| PVC pipe drilling template, square | $21.70 | |
| Bungee shock cord for coupler-spreaders | ||
| Toggles made from tent poles | ||
| Pipe coupling tubing type 1, over-sized | $16.27 | |
| Hose clamps, 46 | $36.43 | |
| Pipe coupling tubing type 2, 1/2" black PVC | $15.36 | |
| Pipe couplings, 1/2" PVC white | $13.77 | |
| PVC glue & purple primer | $8.00 | |
| Evaporation cloth, 13.3 yds. | $50.63 | |
| Cloth spreaders, wood stripping, 10' | $5.94 | |
| Pond edge fence posts, 12 | $30.00 | |
| Pond edge fencing, mesh, black | $0.00 | |
| Backflow fill valve? | ||
| High pressure pump, no switch | $0.00 | |
| Low voltage disconnect | $0.00 | |
| Sink & shower lights | ||
| 12V DC power supplies, 2. Astron 60A | $0.00 | |
| 12V fuses, 5,10, 15, 20, 25, 30A | $0.00 | |
| Signage | $0.00 | |
| Magnets, 2 more, for pressure washing | ? | |
| 2nd shower if someone brings 3 pallets | ||
| Anti-freeze, for pressure washer, gallon | ||
| Total DPW-only cost | $529.78 | |
| I | Attachment | Action | Size | Date | Who | Comment |
|---|---|---|---|---|---|---|
 jpg |
Sink_floaties_filter.jpg | manage | 113 K | 18 Aug 2012 - 02:46 | BillMorrison | SinkFloatiesFilter |
